Description

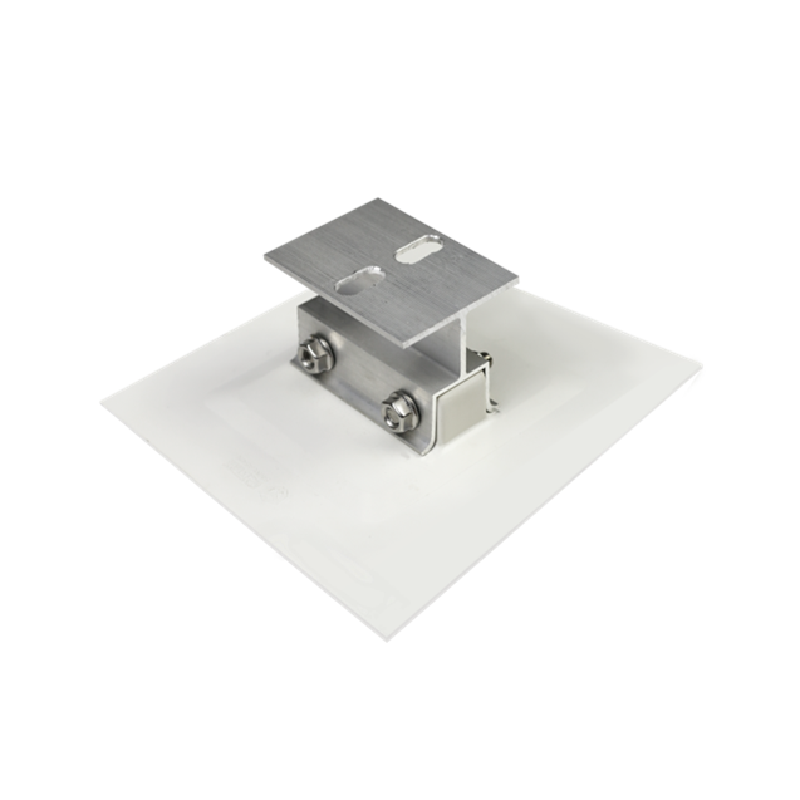

Heat-Weldable Photovoltaic Mount for TPO/PVC Roofs
Our innovative Heat-Weldable PV Mount is engineered specifically for commercial rooftops with single-ply TPO or PVC membranes. This non-penetrating support creates a permanent, molecular bond with the roofing material by utilizing a simple hot-air welding process. It forms a completely integrated, waterproof foundation for your solar array, eliminating the risks associated with traditional penetrating attachments and ensuring the long-term performance of both your roof and your PV system.
Key Features & Benefits:
* True Waterproof Integration: The mounting base plate is thermally welded directly to the TPO or PVC membrane, creating a monolithic, waterproof seal that is as strong as or stronger than the roof itself. This eliminates the primary source of leaks in rooftop installations.
* Superior Wind Uplift Resistance: The welded connection provides exceptional resistance to wind forces, far exceeding the performance of weighted or ballasted systems. This ensures your solar array remains securely anchored, even in extreme weather.
* Preserves Roof Integrity & Warranty: As a completely non-penetrating solution, it prevents any compromise of the roof deck and underlying structure. This installation method is widely accepted by major roofing membrane manufacturers, helping to preserve your existing roof warranty.
* Durable & Corrosion-Resistant: Manufactured from high-strength, anodized aluminum or stainless steel, the mount is built to withstand harsh outdoor environments, ensuring a long service life that matches your PV system.
* Engineered for Stability: The optimized design provides a low-profile, rigid base for industry-standard solar rails, ensuring the structural stability of the entire array.
* Streamlined Installation:The simple weld-on design allows for rapid installation by certified roofing professionals, reducing labor time and overall project costs.
Technical Specifications:
Compatible Roofing: TPO & PVC Single-Ply Membranes
Attachment Method: Heat-Welded (Thermal Fusion)
Material: Aluminum Alloy (Anodized Finish) , 304/316 Stainless Steel，TPO or PVC
Compatibility :Universal for most standard solar rails (e.g., UNIRACAL, RENUSOL)
Wind Uplift Rating: Classified to withstand specific wind speed zones
Applications:
This mount is the ideal solution for:
* Commercial & Industrial Flat Roofs with TPO or PVC membranes.
* New Construction and Retrofit solar projects.
* Building-Integrated Photovoltaics (BIPV) requiring a reliable, waterproof attachment.

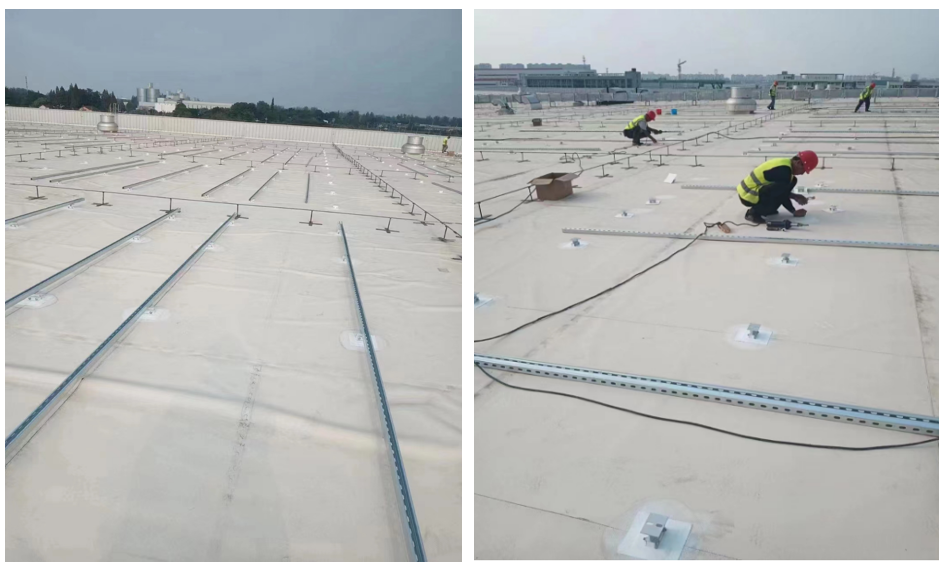

Installation Guide:
1. Positioning: Determine the optimal layout for the mounts according to the solar array engineering plans.
2. Surface Prep: Clean the area on the roof membrane where the mount will be placed, ensuring it is free of dirt, moisture, and debris.
3. Welding: Using a standard hot-air welder (as used for membrane seams), weld the polypropylene-based base plate of the mount directly onto the TPO/PVC membrane. A quality weld is confirmed by a consistent bead of extruded material around the base.
4. Attach Rails: Once the mounts are securely welded and cooled, attach the horizontal solar rails to the mounts using the provided hardware.
5. Mount Panels: Secure the photovoltaic panels to the installed rails to complete the assembly.
Why Choose Our Weldable PV Mount?
*Maximum Reliability: The welded bond is permanent and waterproof, offering the highest level of protection for your building.

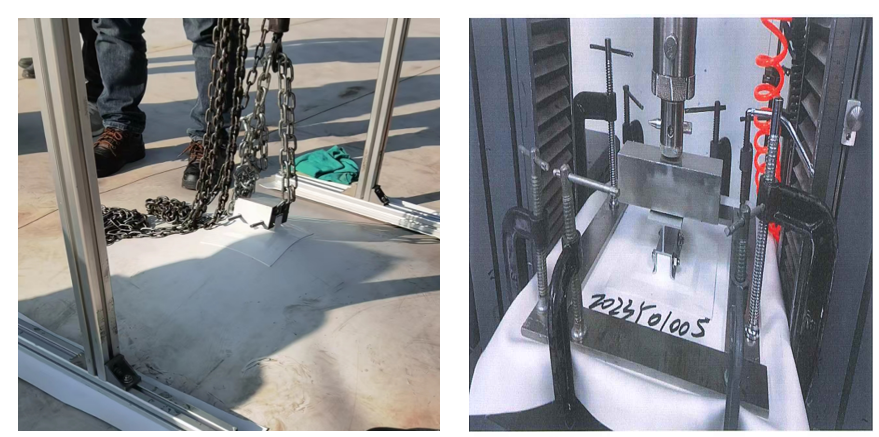

*Proven Performance: Engineered and tested to meet international building codes and standards for structural integrity and wind resistance.
* Optimal ROI: Protects your roof asset, reduces maintenance costs, and provides a durable foundation for your energy-generating solar investment.
Upgrade to the safest, most integrated mounting solution for your TPO/PVC roof. Contact us for technical specifications and a quote today.
