HDPE Geocomposite Drainage Board
Description
Description of Products

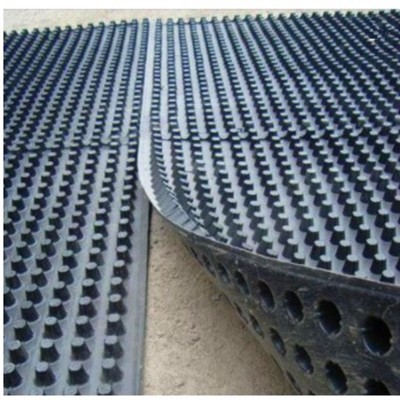

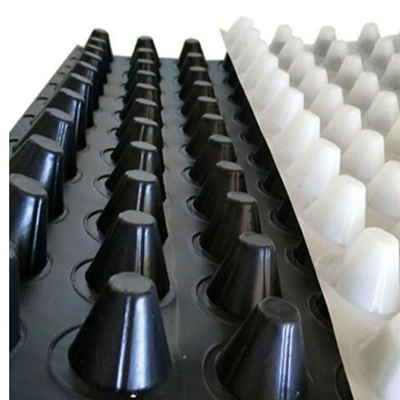

Drainage board is manufactured from High Density Polyethylene resins. Produced by extruding plastic sheet into dimple shape.These dimples,in spatial structure with certain height.

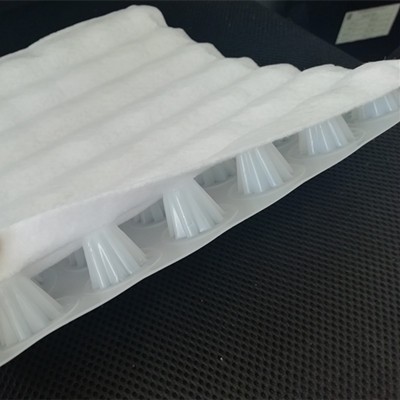

Can resist long-term high pressure without deformation. On the top of the dimples, there is filtration geotextile to make sure the drainage channel ruing well without any block for any articles. For example,filling particles or concrete.
Product Advantages
1. Strong drainage (equivalent to one meter thick gravel drainage).
2. High tensile strength.
3. Reduce the probability of geotextile embedded into the mesh core, and maintain long-term stable drainage.
4. Long term high pressure load (about 3000ka compression load).
5. Corrosion resistance, acid and alkali resistance, long service life.
6. Convenient construction, shorten construction period and reduce cost.
Scope of Application

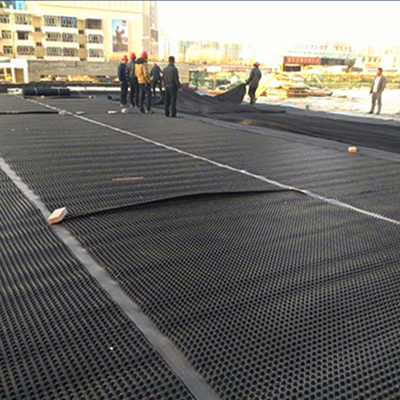

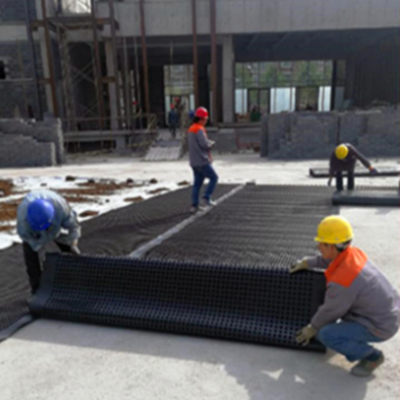

It is specially designed for green planting roofing system. It could be applied in variety of projects:
·Landscape engineering, garage top greening, roof garden, football field, golf course, beach project;
·Municipal engineering, road base, subway, tunnel, landfill
·Construction engineering, upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation.
Item
Material
Height(mm)
Compressive Strength (≥KMPa)
Tensile Strength (≥KMPa)
Elongation (≥%)
Longitudinal Flow Capacity (cm2/s)
Puncture Strength(N)
BN-DB08
HDPE
8
270
300
25
5
300
BN-DB10
HDPE
10
300
300
25
5.6
300
BN-DB12
HDPE
12
300
300
25
5.9
300
BN-DB16
HDPE
16
300
300
25
6.2
300
BN-DB20
HDPE
20
300
450
40
11
330
Standard Packaging Roll(Width*Length)(m)
2m/ 3m * 15m/20m
Remark: Special spec and sizes can be produced according to customers requirement.
