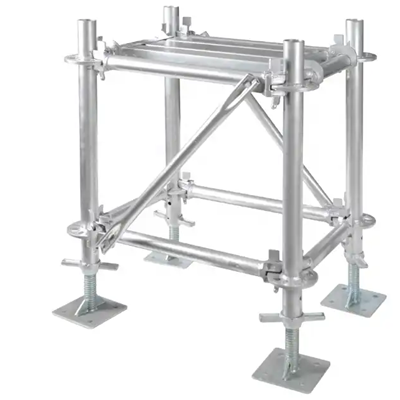

Hot-Dip Galvanized Ringlock Scaffolding System for Heavy Duty Construction
Description
Ringlock Scaffolding: A Modular System for Enhanced Efficiency and Safety
Ringlock scaffolding is recognized as a premier modular scaffolding system, distinguished by its unique node point connection technology. It is engineered for superior load-bearing capacity, rapid assembly, and exceptional versatility, making it a preferred solution for complex industrial projects, civil engineering works, and high-rise construction.
Core Design Principle:

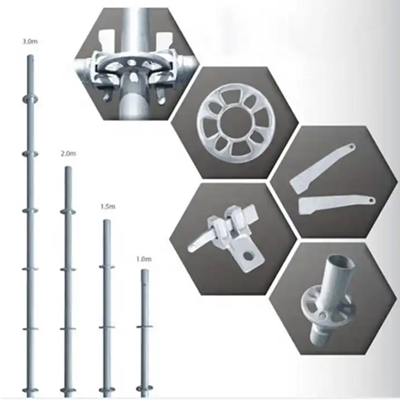

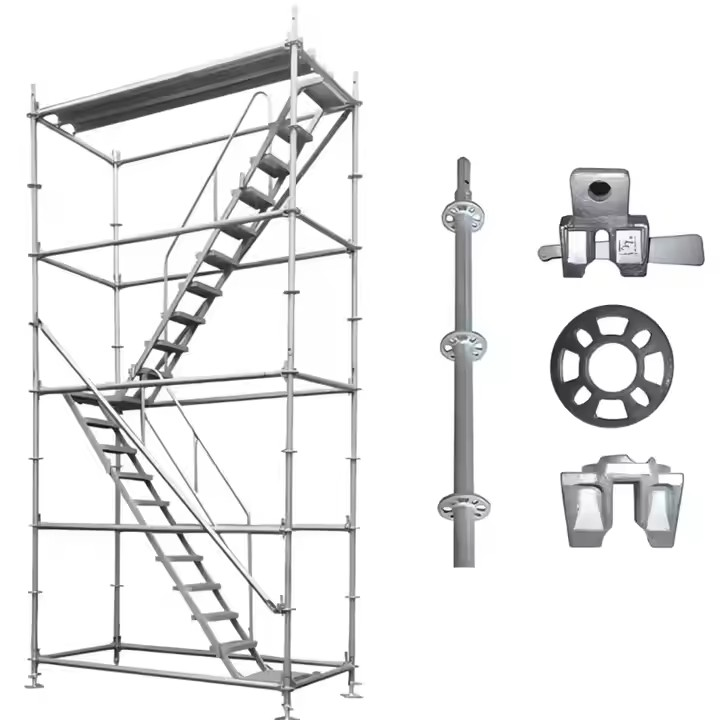

The system's hallmark is its patented node point,which consists of a rosette-shaped ring welded at precise intervals to the vertical standards (uprights). Horizontal ledgers and diagonal braces are connected to these rings using specially designed drop-forged wedges. This wedge-lock mechanism creates a rigid, moment-resistant connection that is both swift to engage and highly secure.
Key Features and Benefits
1. High Load Capacity: The rosette-and-wedge design provides a robust connection, allowing the system to support significantly heavier loads compared to many conventional scaffolding systems. This makes it ideal for supporting concrete pours, heavy equipment, and concentrated material storage.
2. Rapid Installation and Dismantling: The simple "drop-in" connection for ledgers and braces eliminates the need for nuts, bolts, or loose components. This leads to a substantial reduction in labor time and costs, streamlining project schedules.
3. Unparalleled Versatility and Adaptability: The 360-degree connection points on the rosette ring allow ledgers and diagonals to be connected from any angle. This facilitates the creation of virtually any structure, including standard façades, curved walls, stair towers, and complex geometric shapes, without the need for custom fittings.

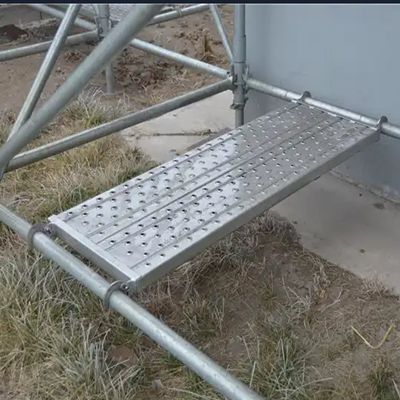

4. Enhanced Safety and Stability: The system's inherent rigidity and the positive lock provided by the wedges result in a highly stable platform. The design minimizes the risk of human error during assembly, as connections are intuitive and secure. Furthermore, the large standing platforms (decks) commonly used with Ringlock systems provide a safer, more comfortable working environment.
5. Systematic and Economical: As a complete modular system, Ringlock reduces the number of loose components required. This leads to better inventory control, lower transportation costs, and decreased loss of parts on site, offering long-term economic benefits.

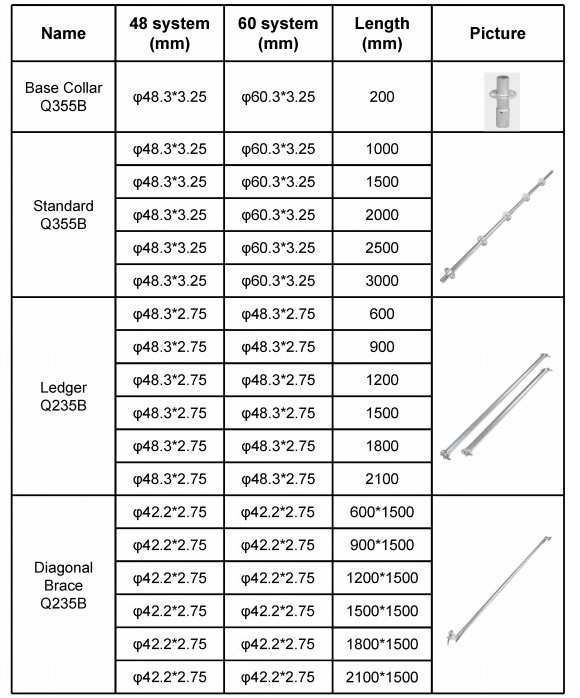

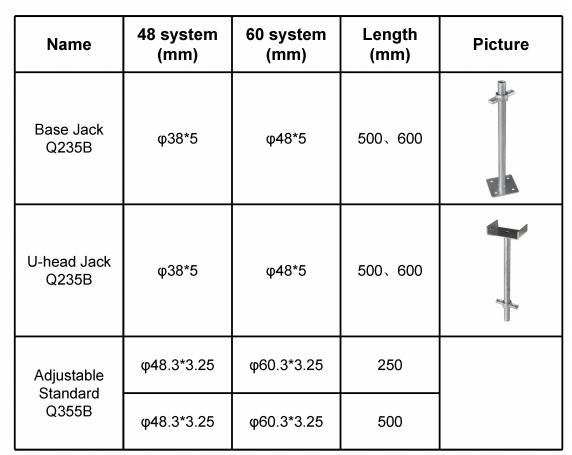

Specification

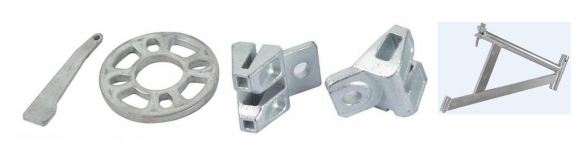

Accessories

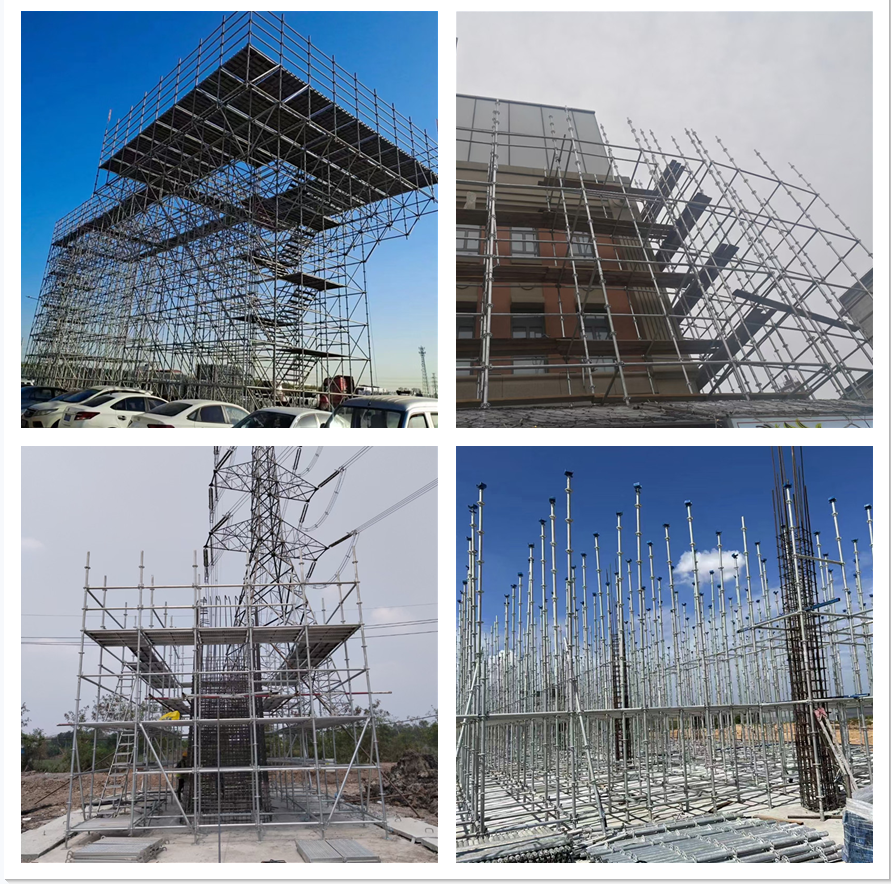

Application Scope
· Facade Access Scaffolding: For high-rise building construction and maintenance.
· Shoring and Support Structures: Heavy-duty shoring for bridge construction and large concrete formwork.
· Complex Access Solutions: Staircase towers, suspended scaffolds, and temporary grandstands.
· Industrial Maintenance: In refineries, power plants, and shipyards where robust and adaptable access is critical.

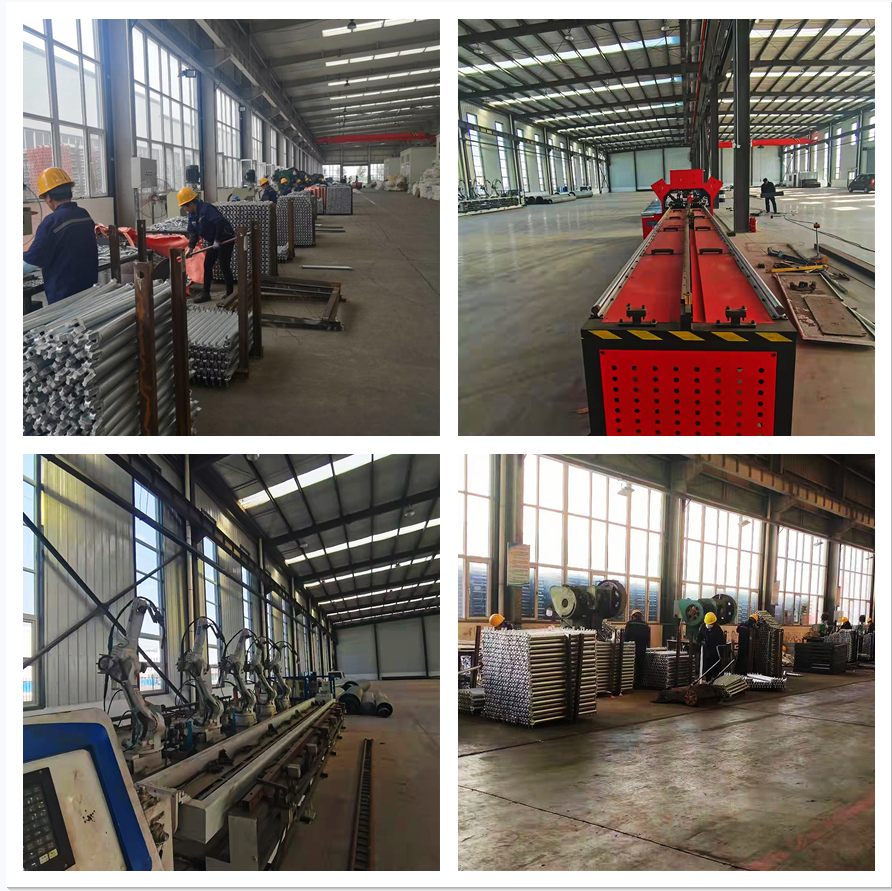

Production Line

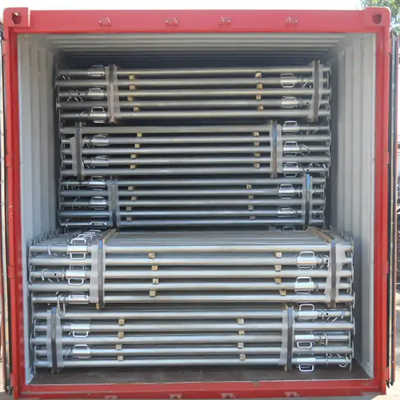

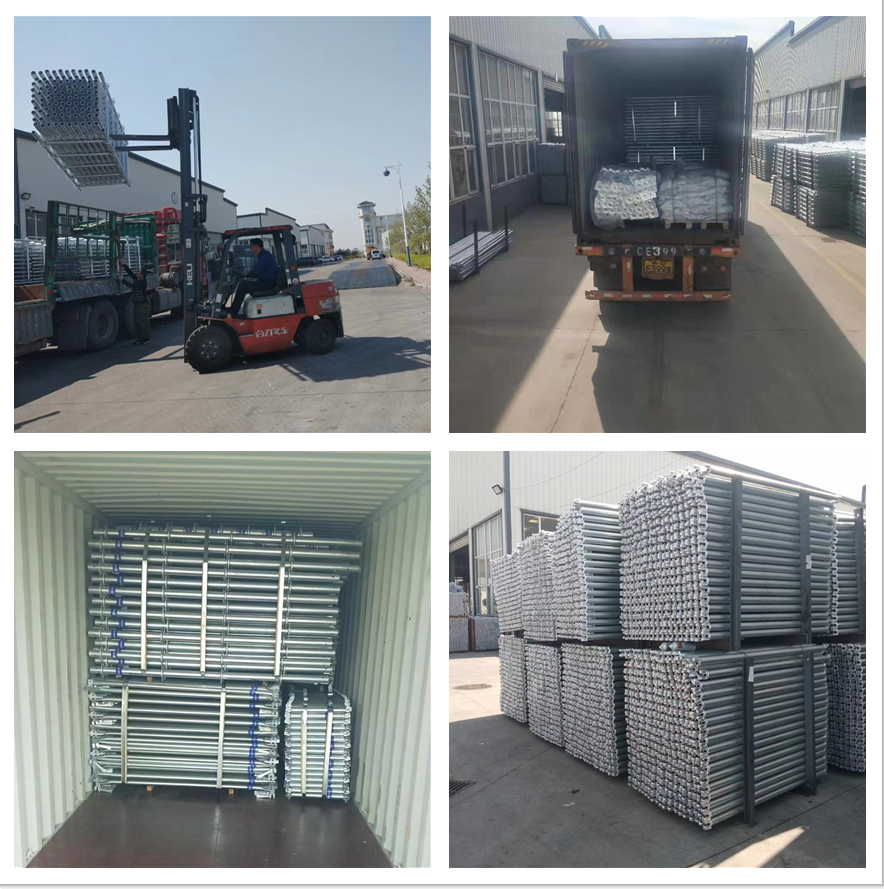

Packing& Logistics
Why Choose ?
· Quality Assurance: Our products comply with international standards (ISO 9001, EN 12811-1) and are certified by third-party agencies (SGS, BV).

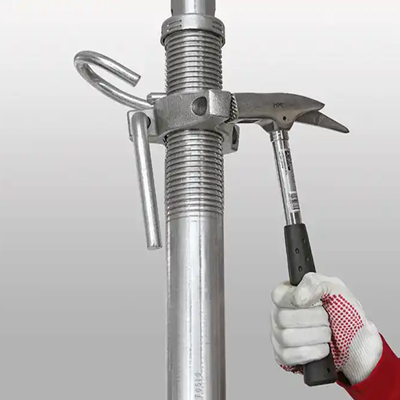

· Full Range of Accessories: We provide all necessary components, including base jacks, adjustable screw jacks, and stairway units.
· Expert Support: Our technical team can provide scaffolding layout drawings and professional guidance for your specific project.
· Competitive Pricing & Reliable Delivery: We offer factory-direct prices and have a proven track record of on-time delivery worldwide.
Advantage
● Advanced Technology , reasonable joints design, stable connection.
● Assembling easily and quickly ,greatly reduce the time and labor cost
● Upgrade Raw Materials by low-alloy steel
● High Zinc Coating and long life to use , clean and beautiful
● Automatic welding, high precision and superior quality
● Stable structure , high bearing Capacity , safe and durable
Contact Us
Ready to Elevate Your Project with a Safer, More Efficient Scaffolding System?
Contact us today for a free quotation and professional consultation.Let us discuss how our Ring lock Scaffolding can meet your specific needs and save you money.
