Waterproofing Corners For Roof Waterproof Detailed Parts Treatment
Description
Pre-Fabricated PVC TPO Corners for Single-Ply Roof
Prefabricated accessories are all made by our TPO , PVC and HDPE waterproof membranes .Which is easy to be welded by hot air with same waterproof membrane .They will be made in advance in our factory and used on site directly
OEM and ODM are welcomed.
Features
★More efficient, crews don’t sacrifice quality for speed
★The ability to get more work done without additional labors
★Increased revenue from additional jobs that can be completed due to time saving

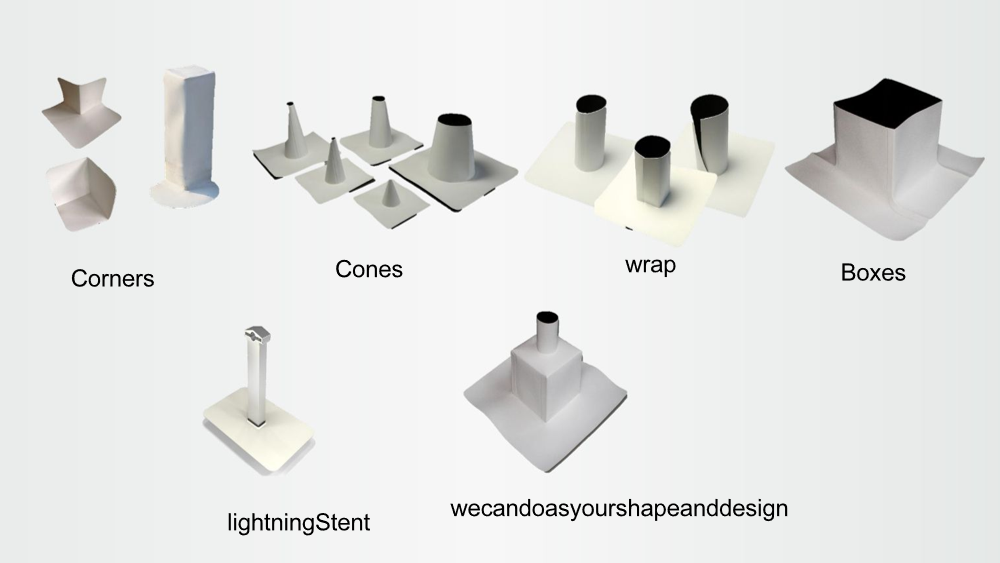

Product Range Includes:

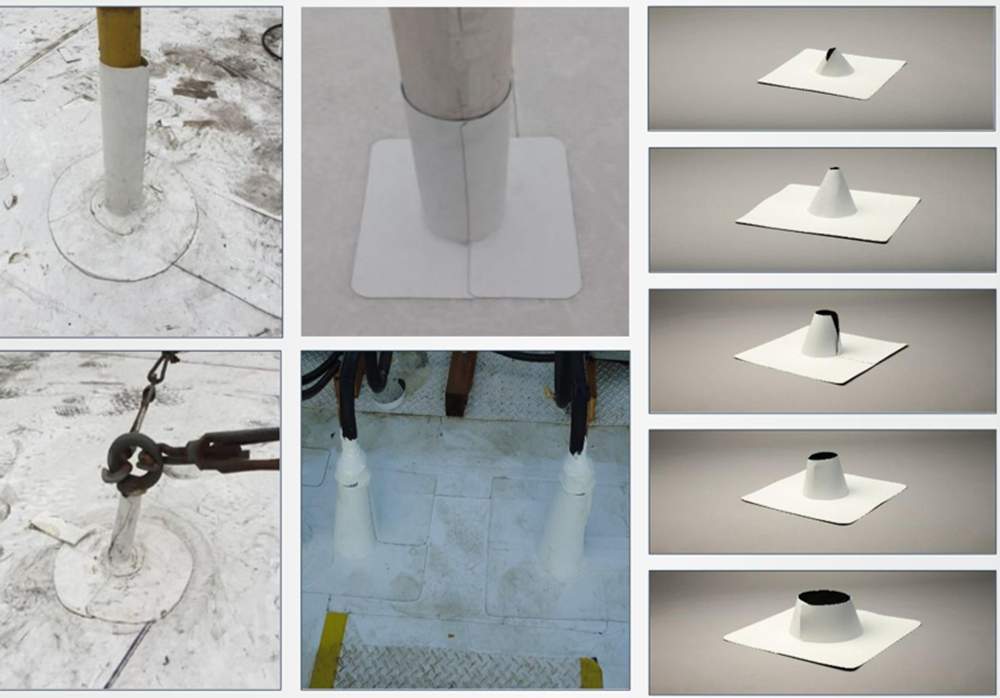

· Pipe Boots: Available in various sizes to fit standard roof penetrations. Ensures a perfect seal around pipes, conduits, and vents.

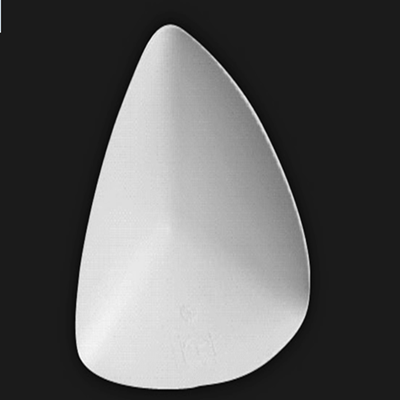

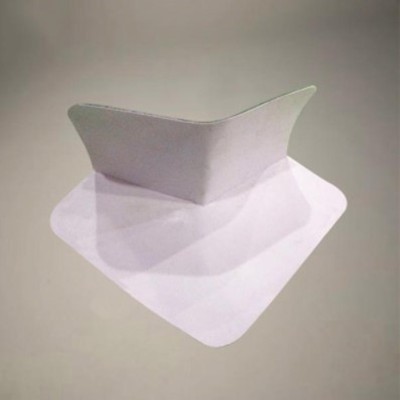

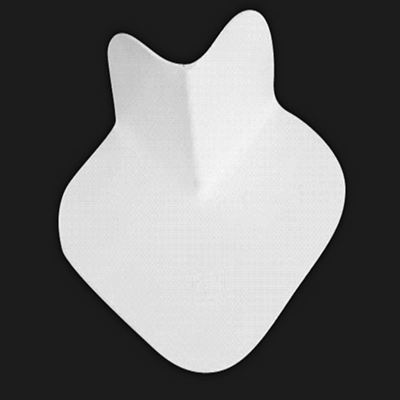

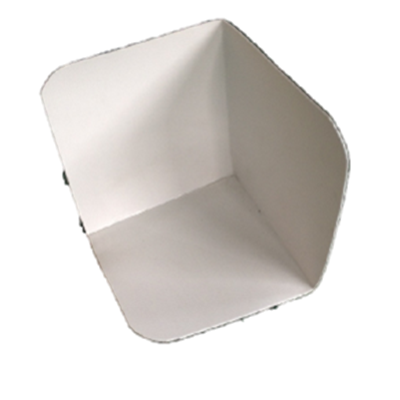

· Inside & Outside Corners: Pre-formed 90-degree corners for perfect seals at parapet walls, expansion joints, and other wall-to-roof transitions.
· Drain Sumps & Flashings: Specifically designed to create a robust, leak-proof seal around roof drains, the most critical detail in any roofing system.
· Custom Prefabricated Details: We can manufacture custom shapes to meet the specific requirements of your project.
Application Scope
In the process of waterproof construction, prefabricated accessories can be used to properly handle some detailed places
, which can avoid potential leakage and greatly improve the effect and efficiency of construction

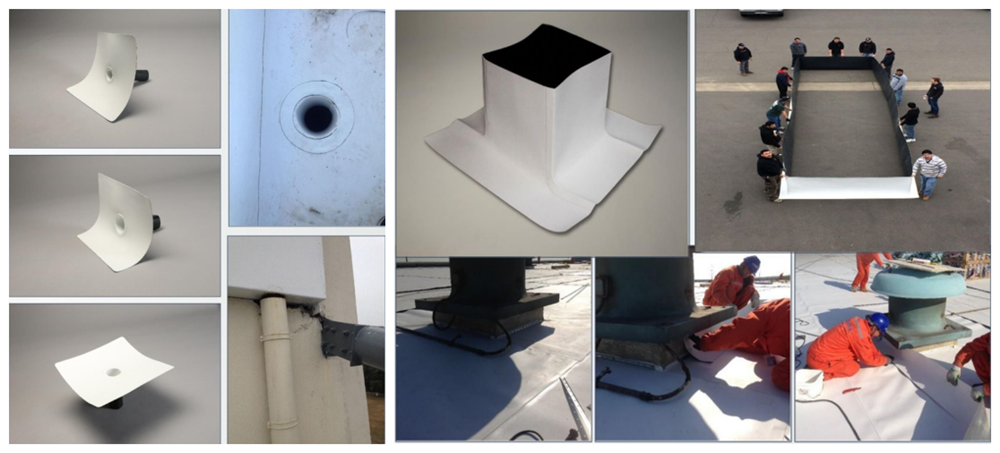

How It Works (Installation Simplicity):
1. Position: Place the pre-fabricated detail (e.g., pipe boot) over the penetration.
2. Weld: Using a standard hot air welder, weld the flange of the detail directly onto the TPO /PVC base sheet or membrane.
3. Inspect: The result is a strong, permanent, and watertight bond that is as strong as the membrane itself.
Technical Data:
· Material: High-quality TPO PVC Polymer Blend
· Thickness: Matches standard TPO/PVC membrane thicknesses (e.g., 60 mil, 80 mil)
· Welding Method: Hot Air Welding
· Compatibility: Designed for use with all major TPO/PVC membrane brands and systems.
· Standards: Meets or exceeds ASTM and international roofing standards.
