Hot dip galvanized European Standard disk lock steel tubular scaffolding system
Description
Ringlock Scaffolding System | High-Capacity, Modular & Safe
Our Ringlock Scaffolding is engineered for superior strength, faster assembly, and unmatched versatility, making it the ideal choice for large-scale construction projects, bridge works,
and industrial maintenance. It combines robust safety with economic efficiency, saving you time and labor costs.
Key Advantages
(1) Quick Assembly & Dismantle
· The modular design and simple wedge connection system reduce assembly time by up to 50% compared to traditional scaffolding.
(2) Superior Safety & Stability
· The unique rosette (disc) and cup-head ledger design create a rigid node connection, offering exceptional load-bearing capacity and stability.
(3) Heavy-Duty Performance
· Manufactured from high-strength steel (Q235/Q355), it supports demanding applications and heavy loads with ease.
(4) Unmatched Versatility
· Ideal for complex structures like curved facades, towers, and access scaffolds due to its ability to connect in multiple directions.
(5) Cost-Effective
· Long service life with hot-dip galvanized coating and lower labor requirements lead to a significantly reduced total cost of ownership.
Detailed Product Description
What is Ringlock Scaffolding?

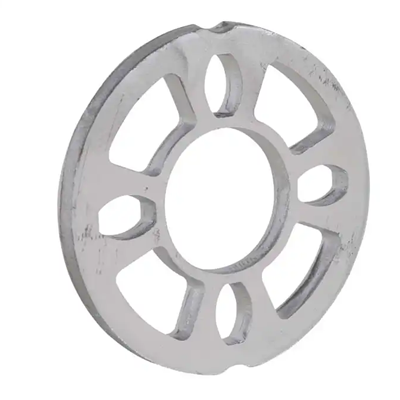

The Ringlock System is a type of modular scaffolding characterized by its central rosette(disc) welded to vertical standards at fixed intervals. Horizontal ledgers are connected to the rosettes using drop-forged wedges, creating a highly robust and rigid frame structure. This design is renowned for its high load capacity and suitability for massive projects.

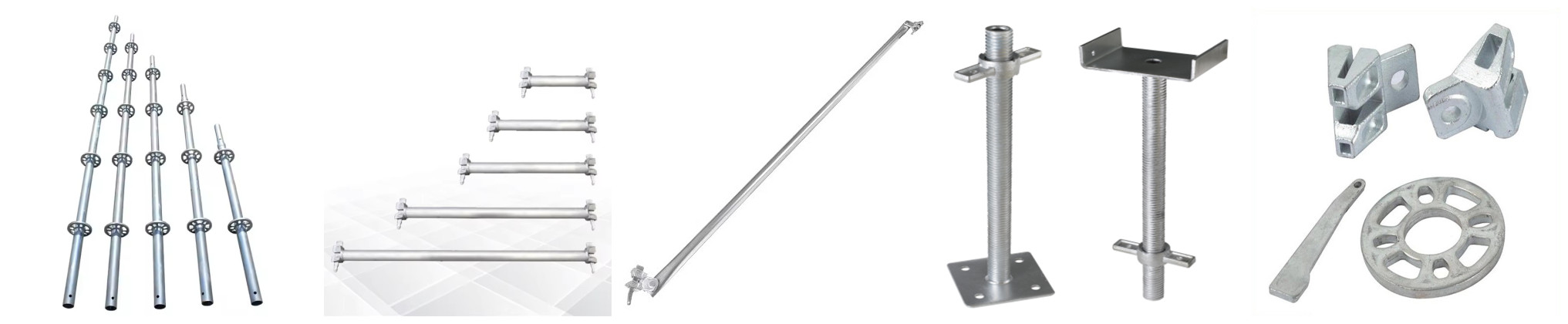

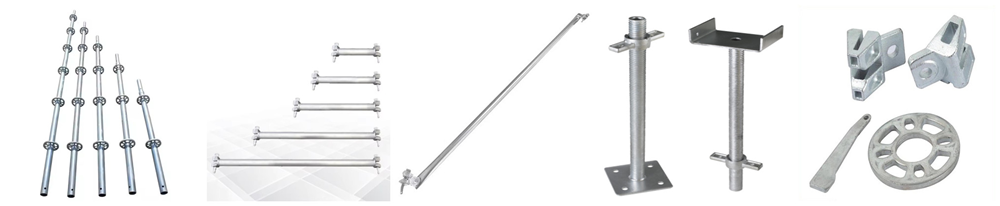

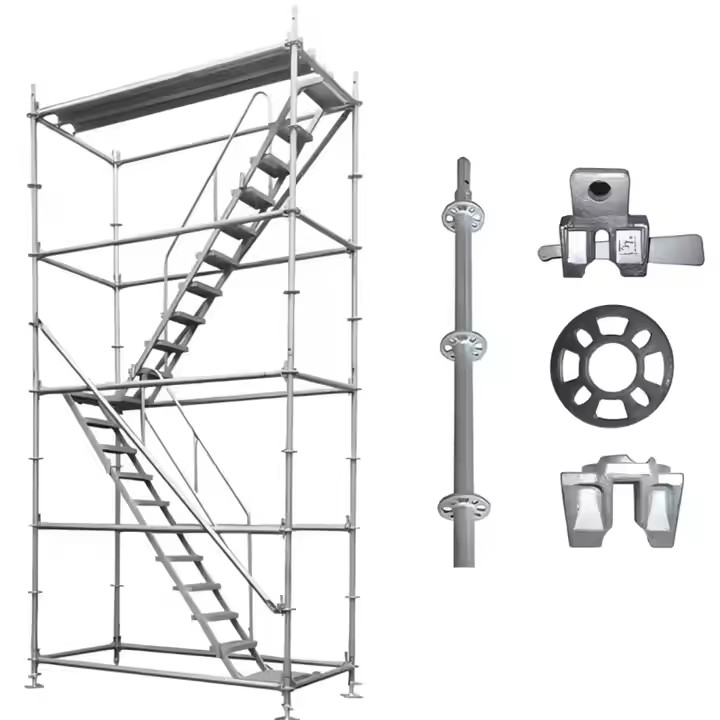

Key Components & Features:
· Vertical Standard: Features welded rosettes at regular intervals (typically 500mm or 1000mm), serving as the primary connection points.

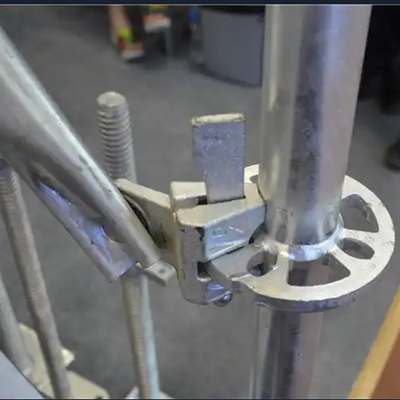

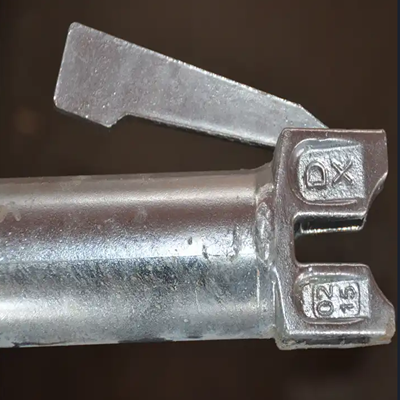

· Horizontal Ledger: Connects to the rosette with a cup-headed end and is secured by a unique wedge pin. This connection is self-locking and incredibly secure.
· Diagonal Brace: Ensures the overall stability and rigidity of the scaffold structure, preventing lateral movement.
· Hot-Dip Galvanized Surface: Provides superior corrosion resistance, ensuring long-term durability and a professional appearance even in harsh environments.

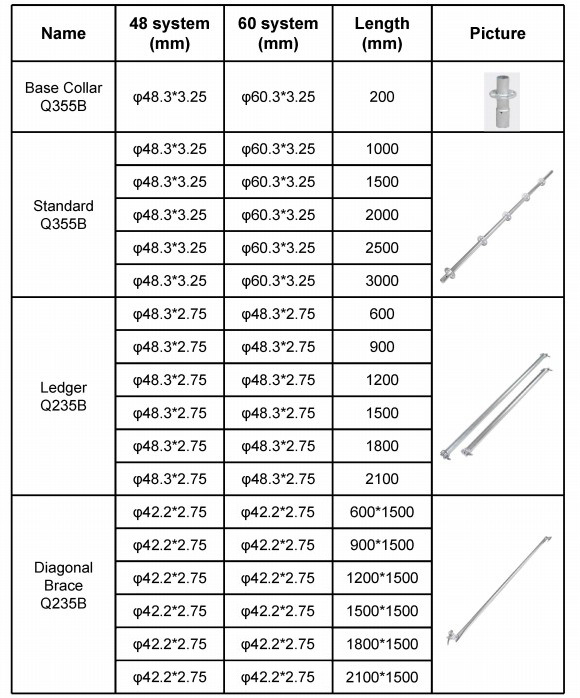

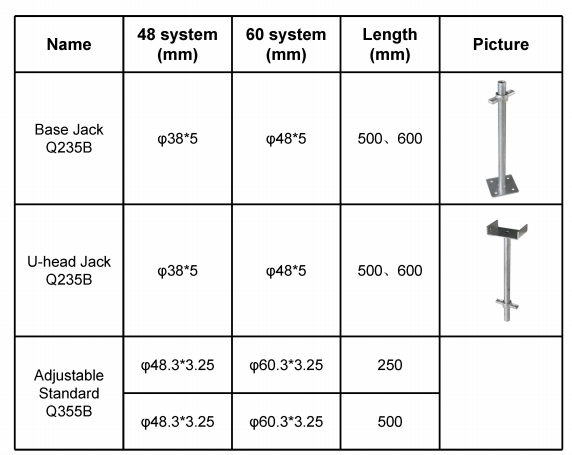

Specification

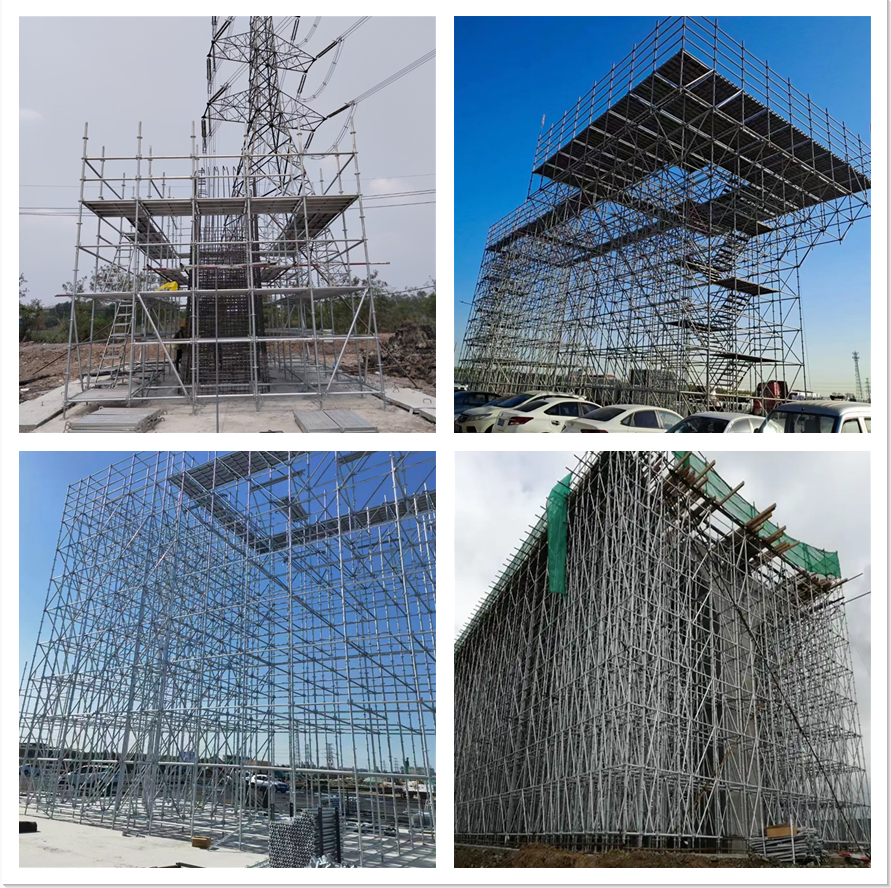

Application Scope
· High-Rise Building Construction
· Bridge and Tunnel Projects
· Power Plants & Industrial Facilities
· Shipbuilding and Repair
· Event Stages and Concert Halls

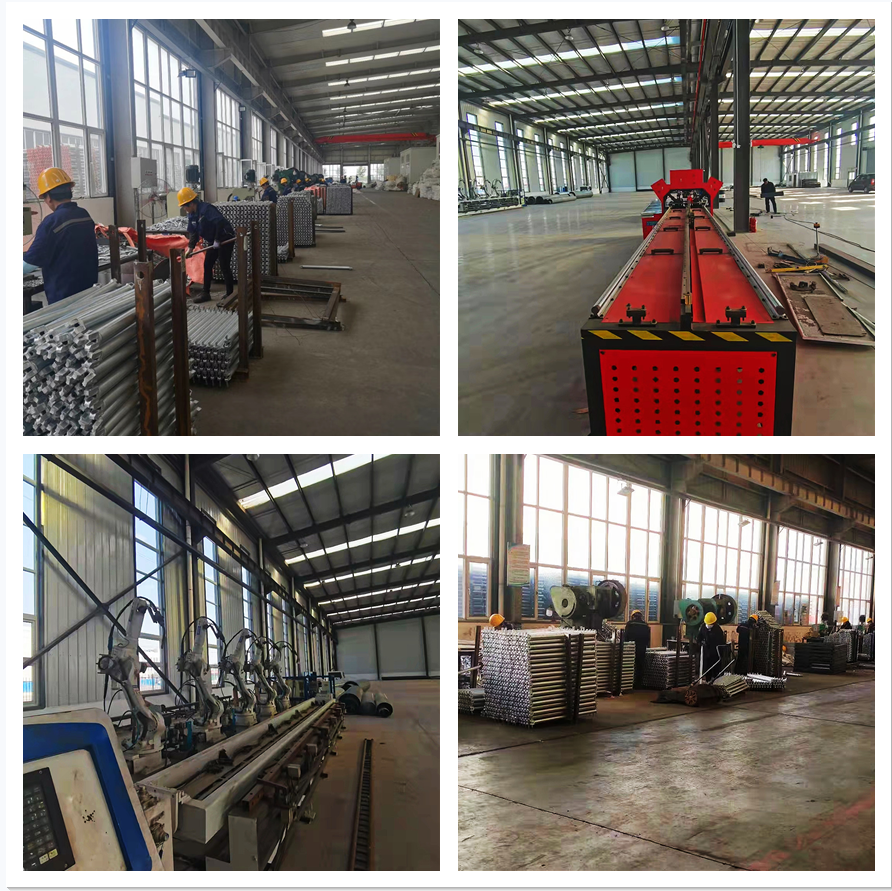

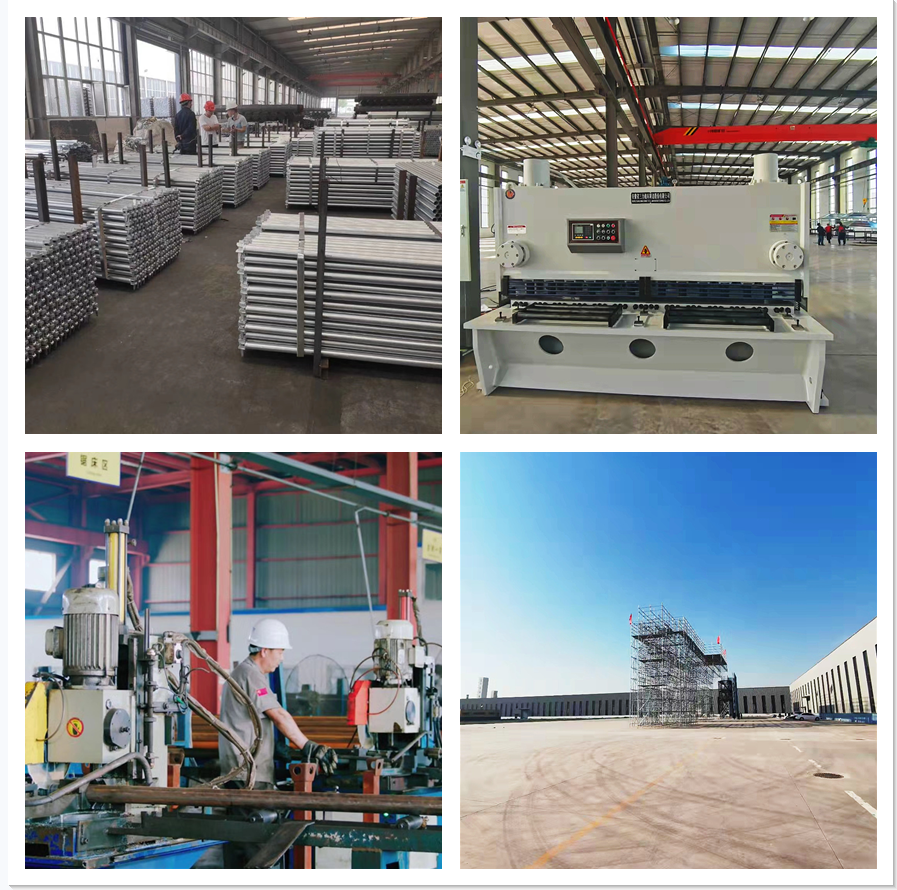

Production Line

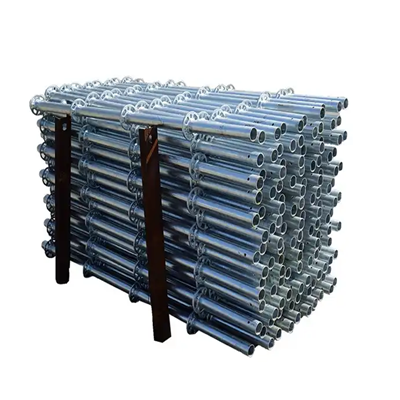

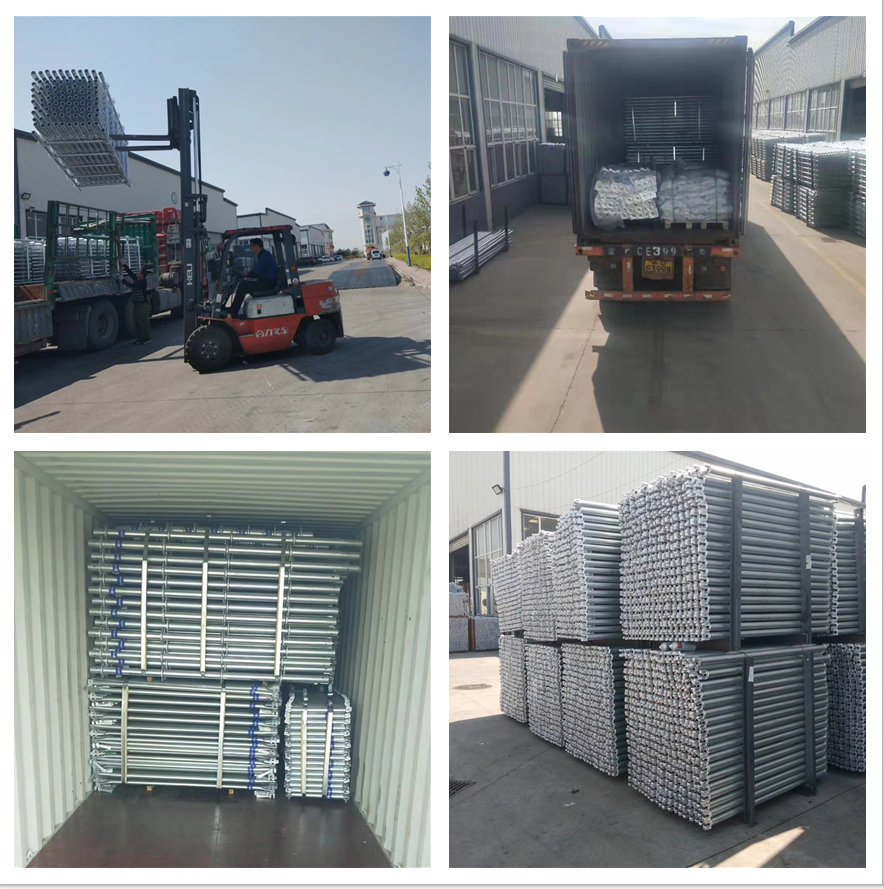

Packing & Logistics
Why Choose US ?
· Quality Assurance: Our products comply with international standards (ISO 9001, EN 12811-1) and are certified by third-party agencies (SGS, BV).
· Full Range of Accessories: We provide all necessary components, including base jacks, adjustable screw jacks, and stairway units.
· Expert Support: Our technical team can provide scaffolding layout drawings and professional guidance for your specific project.
· Competitive Pricing & Reliable Delivery: We offer factory-direct prices and have a proven track record of on-time delivery worldwide.
Contact Us
Ready to Elevate Your Project with a Safer, More Efficient Scaffolding System?
Contact us today for a free quotation and professional consultation.Let us discuss how our Ring lock Scaffolding can meet your specific needs and save you money.
