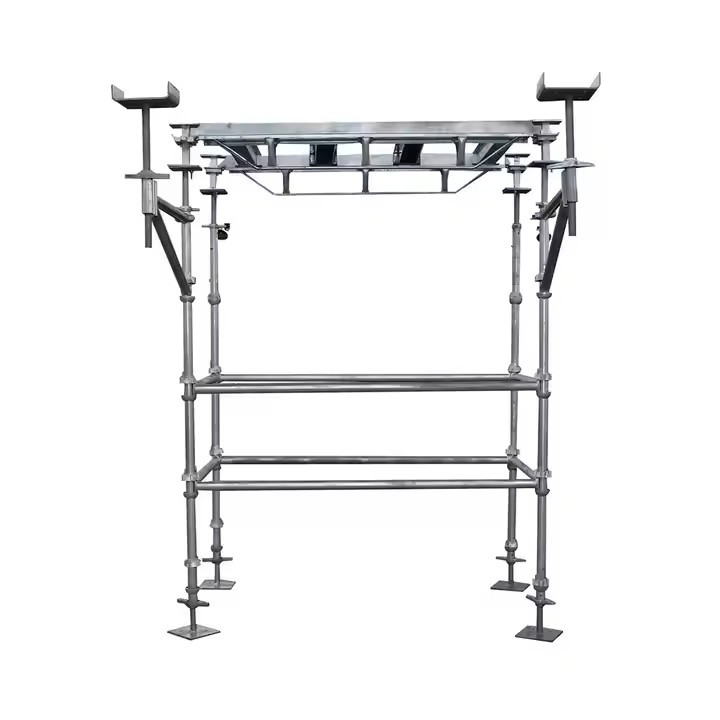

Cuplock Scaffolding System | Heavy-Duty Modular Scaffold for Demanding Projects
-----The Proven, High-Capacity System for Industrial Construction, Shoring, and Complex Access Scaffolds.
Product Description
When failure is not an option, trust the Cuplock Scaffolding System. Designed for the most challenging environments—from bridge construction and industrial plants to high-rise developments—our system delivers uncompromising strength and safety. Unlike lighter alternatives, Cuplock is built to handle heavy loads, constant use, and the rigors of the job site, providing a stable platform that gives your team the confidence to work productively at height.
Technical Details

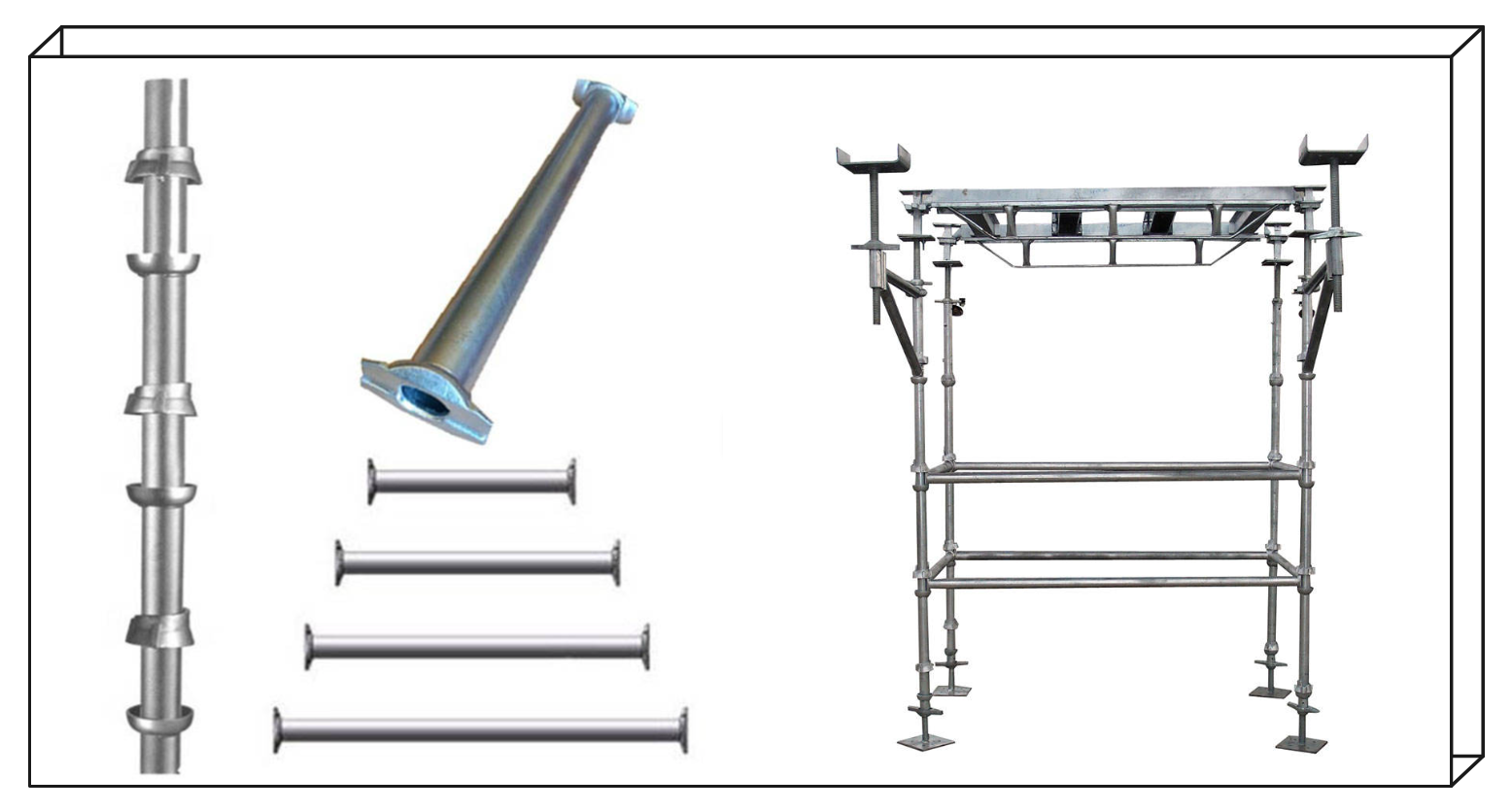

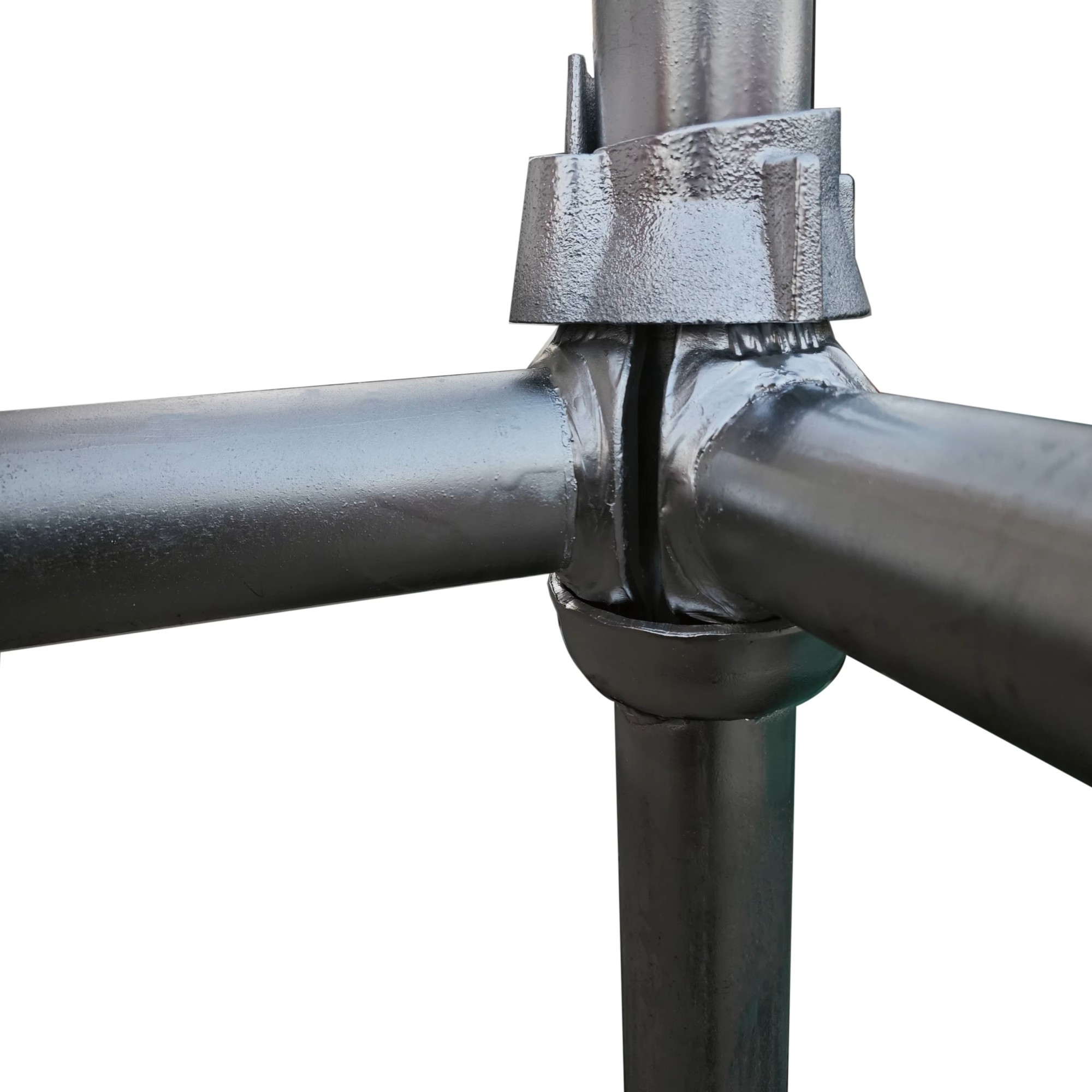

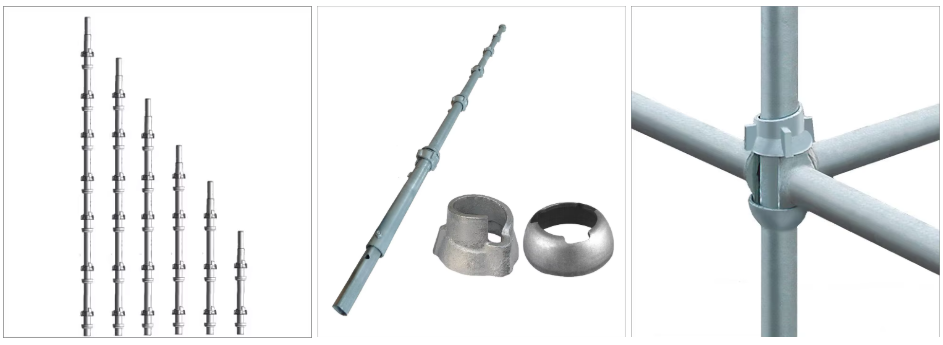

The system's core strength lies in its patented node point: a rosette-shaped cup fixed to the standard at 500mm or 600mm intervals. Ledgers and transoms are secured with a unique drop-forged blade and a single, hammer-driven wedge pin. This creates a rigid, moment-resistant connection that is both quick to assemble and incredibly robust. Our components are manufactured from high-tensile S355 steel and undergo a full hot-dip galvanization process, ensuring they withstand harsh site conditions for years.
Key Features
* High Load Capacity: Rated for heavy-duty industrial loads, tools, and material storage.
* Hot-Dip Galvanized Finish: Complete corrosion protection for extended longevity and minimal maintenance.

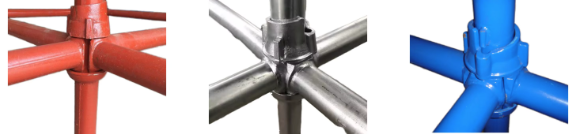

* Rigid Wedge Connection: Single-hammer wedge pin creates a secure, non-slip connection at every node.
* Versatile Applications: Ideal for access scaffolds, support shoring, bridge falsework, and temporary structures.
* Standardized Grid: Pre-determined node spacing simplifies engineering, design, and assembly.

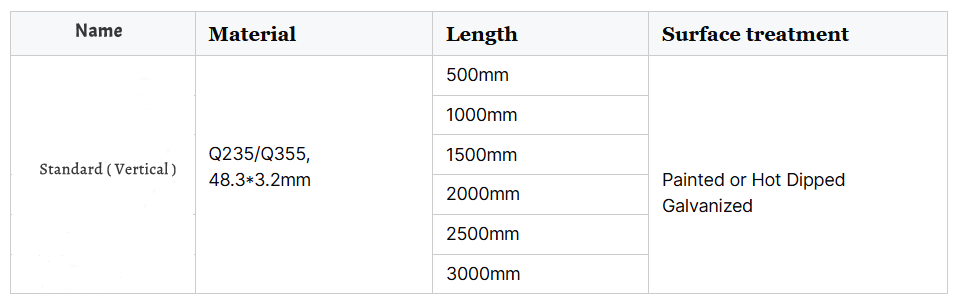

Technical Specifications

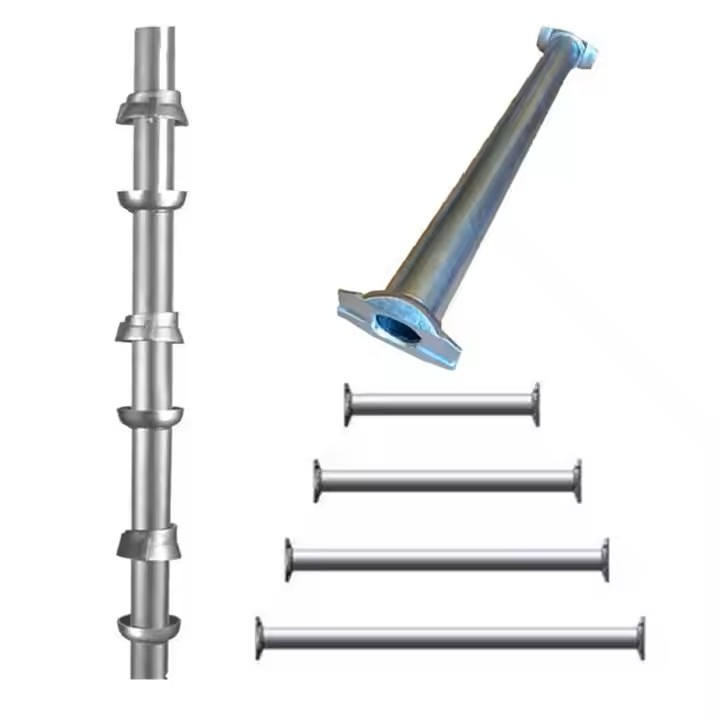

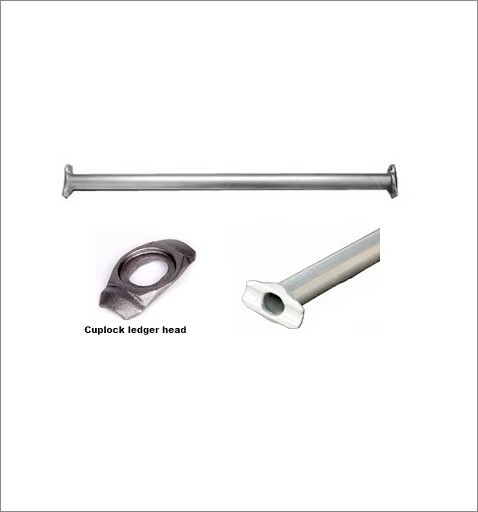

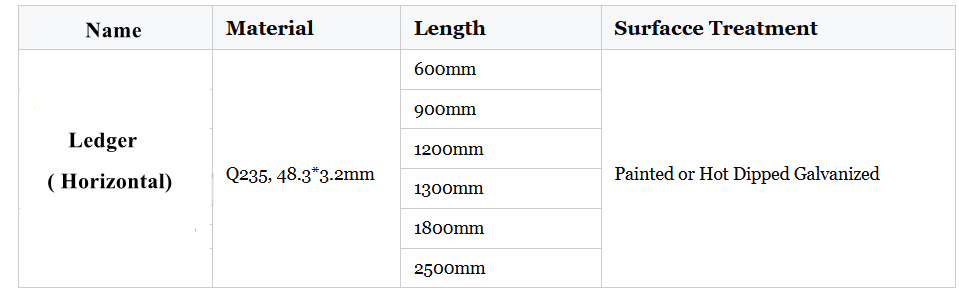

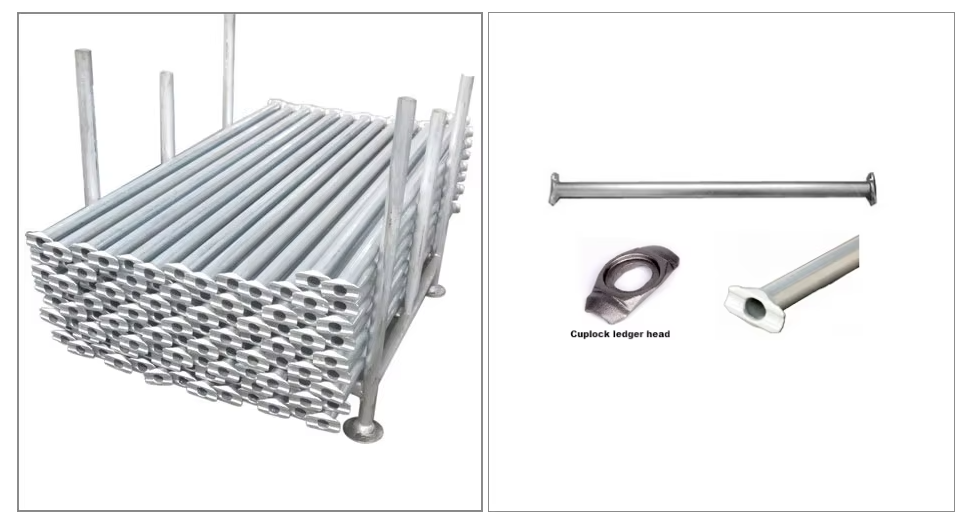

The cuplock system utilizes a carefully selected range of ledger sizes to meet the varied demands of grids used in general support of formwork, many of these can also be used for access structures. each has forged blade(or pressed blade)ends with the minimum projection to resist site damage.

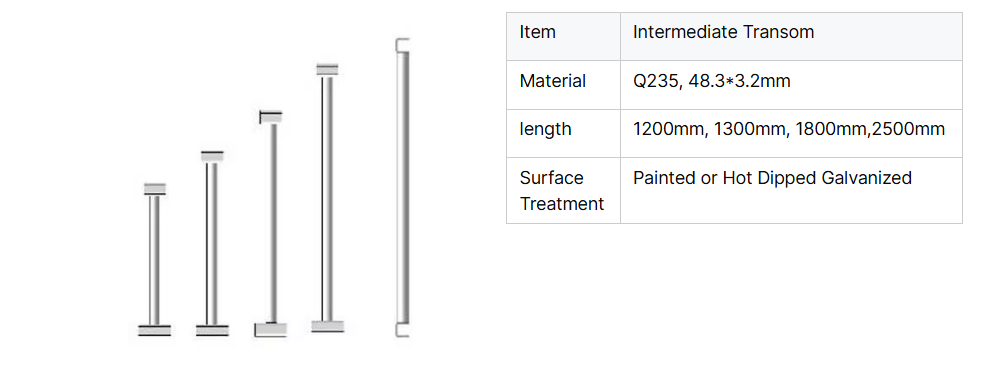

INTERMEDIUM TRANDOM
They are used where scaffold boards require intermediate support between the span of two ledgers, they have an integral locking device to prevent movement during use.

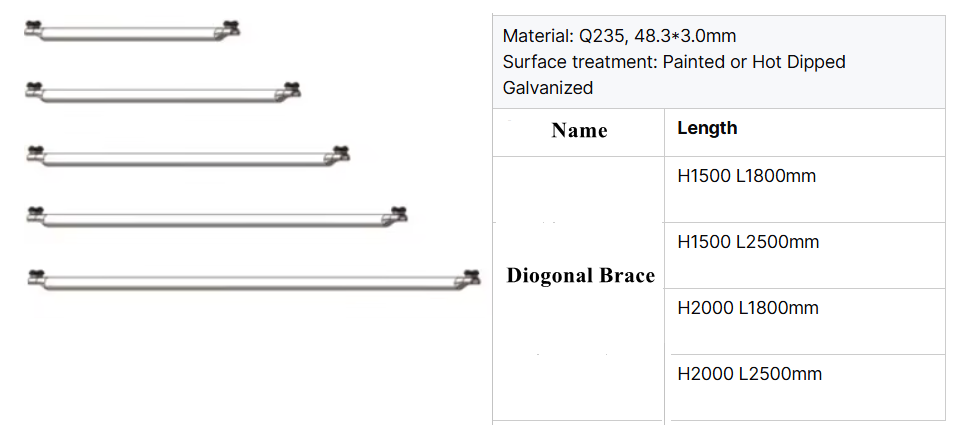

Each brace has swivel blade ends to allow for easy location within the node joint. As only one blade end can be located in each joint, parallel bracing is employed.
INTERMEDIUM TRANDOM
They are used where scaffold boards require intermediate support between the span of two ledgers, they have an integral locking device to prevent movement during use.
Each brace has swivel blade ends to allow for easy location within the node joint. As only one blade end can be located in each joint, parallel bracing is employed.

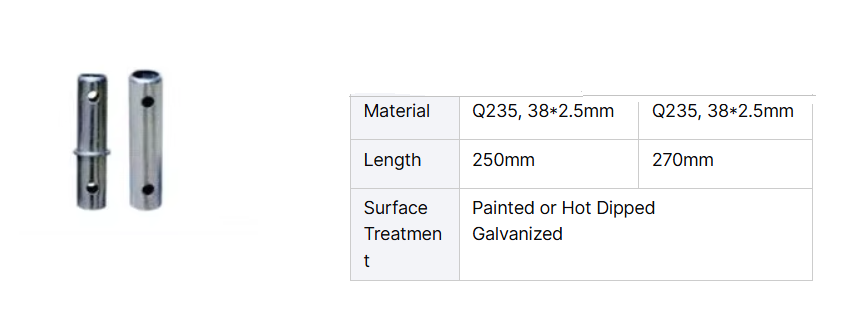

SPIGOT CONNECTION
When necessary verticals are connected end to end by an internal spigot. This is bolted to the lower vertical.

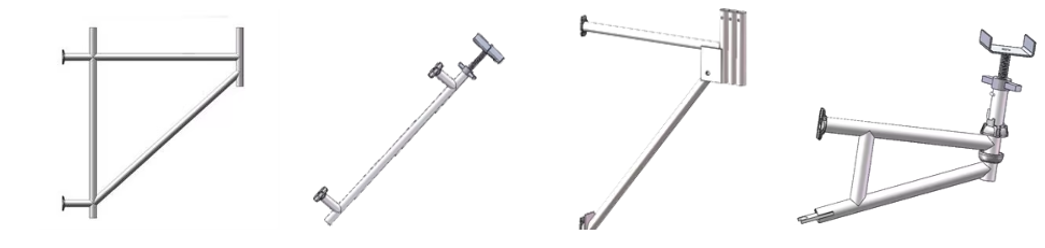

OTHER COMPONENTS

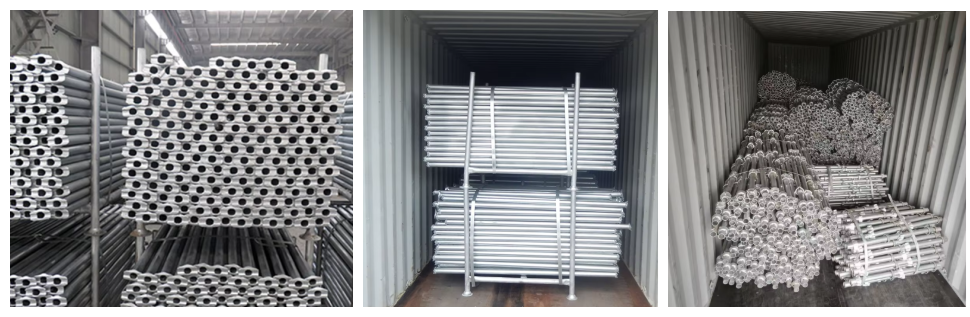

Package and Logistics

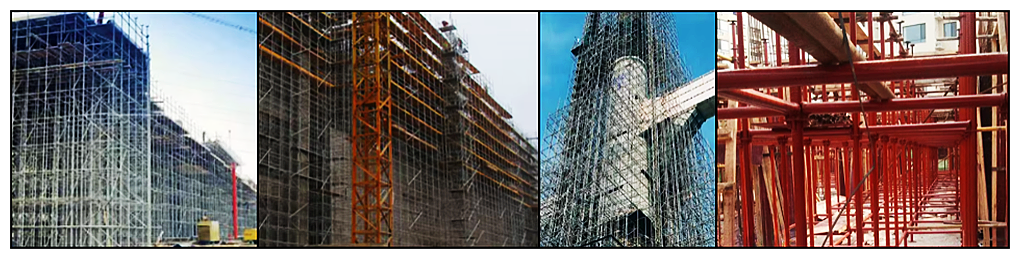

Application :
Cuplock is a versatile, heavy-duty modular scaffolding system. Its primary uses are:
* Construction: For high-rise buildings, industrial plants, and general construction.
* Infrastructure:** In bridge and tunnel construction for support and access.
* Support Structures: Ideal for heavy-duty support of formwork and concrete slabs (shoring).
* Access Platforms: Providing safe working platforms and facade scaffolding.
* Temporary Structures: Used for event stages, grandstands, and security roofs.

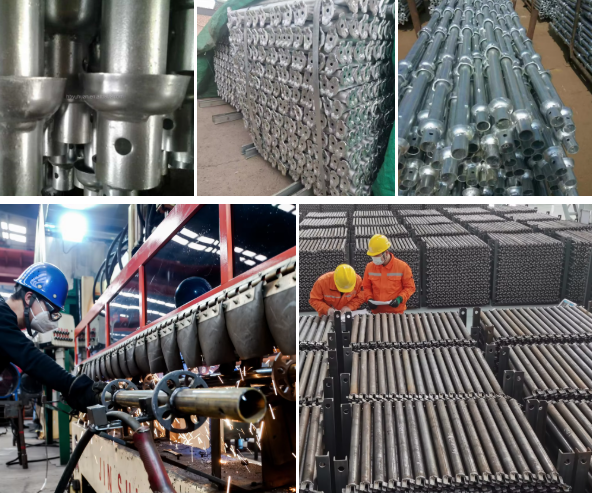

Factory View :
